CD288HC
Details Introduction
100KHz低阻抗 105℃ 5000小时
在高频范围内降低内阻，承受高纹波电流，适用于开关电源，LED等
符合ROHS
主要技术性能
|
项目Items |
性能Characteristics |
||||
|
使用温度范围Category |
-25 to +105℃(6.3 to 16Vdc) -25 to +105℃(160 to 450Vdc) |
||||
|
额定工作电压 |
6.3 to 16Vdc |
||||
|
标称电容量范围 |
220-4700ｕＦ |
||||
|
静电容量允许范围Capacitance Tolerance |
±20%(M) (at 20℃, 120Hz) |
||||
|
漏电流 |
I≤0.03CV (ｕＡ)2 分钟 （at 20℃ after 2 minutes） |
||||
|
损耗角正切值 |
UR(Vdc) |
6.3 |
10
|
16
|
|
|
tanδ (Max.) |
0.22
|
0.19
|
0.16
|
|
|
|
容量大于1,000ｕＦ者，每增加1,000ｕＦ，其损耗角正切值增加0.02 |
|||||
|
温度特性 |
Rated voltage (Vdc) |
6.3
|
10
|
16
|
(at 120Hz) |
|
Z(-25℃)/Z(+20℃） |
2
|
||||
|
Z(-40℃)/Z(+20℃) |
3
|
||||
|
耐久性 |
105℃加额定电压5,000小时，恢复16小时后； |
||||
|
高温贮存 |
+105℃，1,000小时贮存后，恢复16小时 |
||||
尺寸[mm] (Ø8 to Ø12.5)
|
ØD |
8 |
10 |
12.5 |
|
F |
3.5 |
5.0 |
5.0 |
|
Ød |
0.5 0.6 |
0.6 |
|

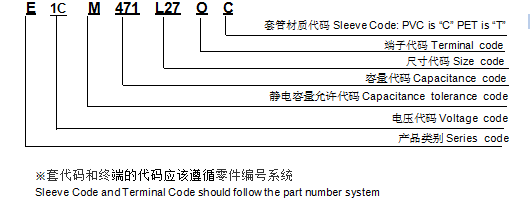

产品料号体系
纹波电流修正系数
|
频率Frequency |
120Hz |
1KHz |
10KHz |
100K Hz |
|
系数Coeffcient |
0.5 |
0.8- |
0.90 |
1.00 |
