VC series

Features:Small volume,high stability,long life Endurance:130℃2000-5000hours Voltage Range:10 to 500dc Capacitance Range:6.8-470μF Operating Temperature Range:-40 to +130℃

Key words:

SMD, LEAD, BOLT, SOLID STATE CAPACITORS

Classification:

Surface Mount

Product accessories:

Hotline:

+86-513-8669 1579

E-mail:

yhy@sanxidz.com

Consulting

VC series

Details Introduction

life:130℃ 2000-5.000 hours

Low resistance, long life, high stability

Designed for the LED lamp, the design of driving source LED

RoHS Compliant

SPECIFICATIONS

Items

Characteristics

Category
Temperature Range

-40 to +130℃

Rated Voltage Range

160 to 500dc

Nominal capacitance range

6.8-100ｕＦ

Capacitance Tolerance

±20%(M) (at 20℃, 120Hz)

Leakage Current

After 1minutes at20℃application of rated voltage,leakage current is not than 0.04cv+100uA

Dissipation Factor
(tan δ)

UR (Vdc)

160

200

250

400

450

500

20℃ 120Hz

tanδ (Max.)%

Temperature
Characteristics

UR (Vdc)

160

200

250

400

450

500

120Hz

Z(-25℃)/Z(+20℃)

Z(-40℃)/Z(+20℃)

Load life

Test conditions duration

After applying rated voltage for 2,000-5.000hours at +130℃ and then resumed for 24hours
Capacitance change:±25% o f the initial measured value
2minutes Leakage current: ≤the initial specified value
Dissipation factor≤ 2times of the initial specified value

Shelf Life

After 130 hours, 1000 hours, the rated voltage is applied for 30 minutes to recover 24 hours.

Capacitance change

20%of the initial value

D.F. (tanδ)

200%of the initial specified value

Leakage current

200%The initial specified value

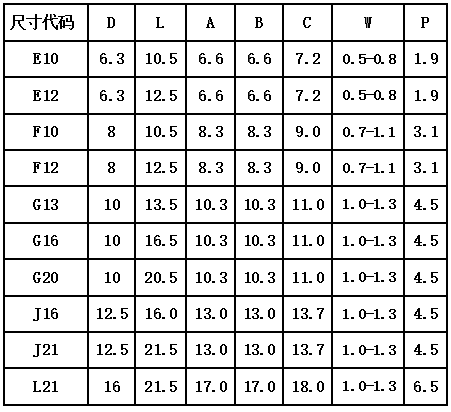

Size Picture mm

　Frequency correction coefficient of ripple current

Frequency（Hz）	120	1K	10K	100K
Voltage（V）
160-500	0.50	0.80	0.90	1.00

WV (Vdc)	Cap (µF)	Case size ΦD×L(mm)	Code	Ripple current (Arms/105℃,100KHz)
160	6.8	8*10.5	F10	80
	10	10*13.5	G10	110
	15	10*16.5	G16	120
	22	10*16.5	G16	190
	33	10*20.5	G20	240
	47	12.5*21.5	J20	330
	68	12.5*21.5	J20	400
	100	16*21.5	L21	650
200	4.7	8*10.5	F10	95
	6.8	8*12.5	F12	100
	10	10*13.5	G13	150
	15	10*16.5	G16	180
	22	10*20.5	G20	220
	33	12.5*21.5	J21	300
	47	16*21.5	L21	380
	68	16*21.5	L21	480
250	2.2	6.3*10.5	E10	60
	3.3	6.3*10.5	E10	70
	4.7	8*12.5	F12	100
	6.8	8*12.5	F12	130
	8.2	10*13.5	G13	150
	10	10*13.5	G16	170
	15	10*16.5	G16	200
	22	12.5*21.5	J21	230
	33	12.5*21.5	J21	320
	47	16*21.5	L21	350

WV (Vdc)	Cap (µF)	Case size ΦD×L(mm)	Code	Ripple current (Arms/105℃,100KHz)
400	1	6.3*10.5	E10	30
	1.5	6.3*10.5	E10	45
	2.2	8*10.5	F10	50
	3.3	8*12.5	F12	90
	4.7	10*13.5	G13	115
	6.8	10*13.5	G13	150
	6.8	10*16.5	G16	160
	10	10*20.5	G20	180
	15	12.5*21.5	J21	210
	22	16*21.5	L21	280
450	1	6.3*10.5	E10	30
	1.5	8*10.5	F10	45
	2.2	8*12.5	F12	60
	3.3	10*13.5	G13	90
	4.7	10*13.5	G13	115
	6.8	10*16.5	G16	150
	10	10*20.5	G20	170
	15	12.5*21.5	J21	210
	22	16*21.5	L21	280
500	4.7	10*16.5	G16	120
	6.8	12.5*16	J16	160
	10	12.5*21.5	J21	180
	15	16*21.5	L21	210
