Patch type
>
Ratings For VC Series

Ratings For VC Series

Features:Small volume,high stability,long life Endurance (+R=With ripple):130℃2000-5000hours Voltage Range (vdc):10 to 500dc Operating Temperature Range(℃):-40 to +130℃ Capacitance Range(uf):6.8-470
Product Series
没有此类产品
Online Inquiry
Description

life:130℃ 2000-5.000 hours

Low resistance, long life, high stability

Designed for the LED lamp, the design of driving source LED

RoHS Compliant



SPECIFICATIONS



Items

Characteristics

 Category
Temperature Range

-40 to +130℃

 Rated Voltage Range

160 to 500dc

 Nominal capacitance range

6.8-100uF

Capacitance Tolerance

±20%(M) (at 20℃, 120Hz)

 Leakage Current

After 1minutes at20℃application of rated voltage,leakage current is not than 0.04cv+100uA




Dissipation Factor
(tan δ)



UR  (Vdc)

160

200

250

400

450

500



20℃ 120Hz

tanδ (Max.)%

24

30




Temperature
Characteristics

UR  (Vdc)

160

200

250

400

450

500

120Hz

Z(-25℃)/Z(+20℃)

6

6

Z(-40℃)/Z(+20℃)

10

18

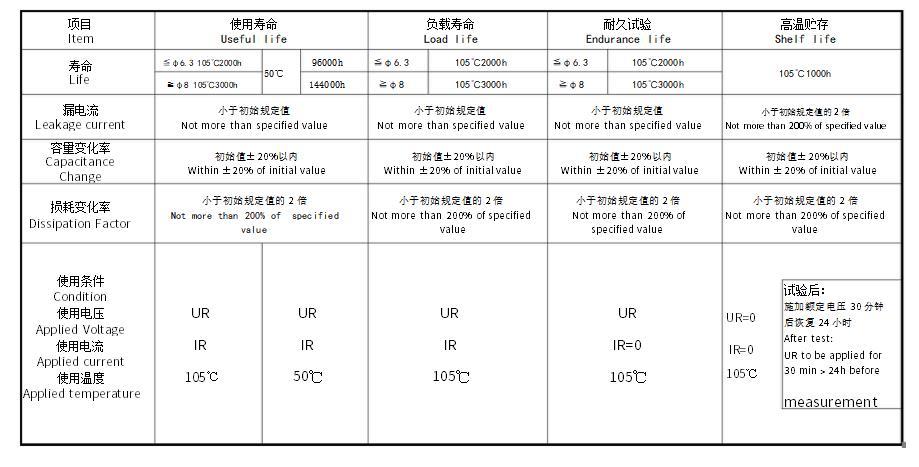

 Load life

 Capacitance change:±25% o f the initial measured value
 Leakage current: ≤the initial specified value
Dissipation factor :≤ 2times of the initial specified value


Shelf Life


After 130℃, 1000 hours, the rated voltage is applied for 30 minutes to recover 24 hours.

Capacitance change


20%of the initial value

D.F. (tanδ)


200%of the initial specified value


Leakage current


200%The initial specified value

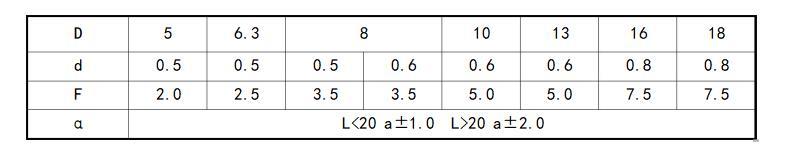

Size Picture mm





  Frequency correction coefficient of ripple current



Hz

120

1K

10K

100K

V

160-500

0.50

0.80

0.90

1.00



WV
(Vdc)

Cap
(µF)

Case size
ΦD×L(mm)

Code

Ripple current
(Arms/105℃,100KHz)

160

6.8

8*10.5

F10

80

10

10*13.5

G10

110

15

10*16.5

G16

120

22

10*16.5

G16

190

33

10*20.5

G20

240

47

12.5*21.5

J20

330

68

12.5*21.5

J20

400

100

16*21.5

L21

650

200

4.7

8*10.5

F10

95

6.8

8*12.5

F12

100

10

10*13.5

G13

150

15

10*16.5

G16

180

22

10*20.5

G20

220

33

12.5*21.5

J21

300

47

16*21.5

L21

380

68

16*21.5

L21

480

250

2.2

6.3*10.5

E10

60

3.3

6.3*10.5

E10

70

4.7

8*12.5

F12

100

6.8

8*12.5

F12

130

8.2

10*13.5

G13

150

10

10*13.5

G16

170

15

10*16.5

G16

200

22

12.5*21.5

J21

230

33

12.5*21.5

J21

320

47

16*21.5

L21

350



WV
(Vdc)

Cap
(µF)

Case size
ΦD×L(mm)

Code

Ripple current
(Arms/105℃,100KHz)

400

1

6.3*10.5

E10

30

1.5

6.3*10.5

E10

45

2.2

8*10.5

F10

50

3.3

8*12.5

F12

90

4.7

10*13.5

G13

115

6.8

10*13.5

G13

150

6.8

10*16.5

G16

160

10

10*20.5

G20

180

15

12.5*21.5

J21

210

22

16*21.5

L21

280

450

1

6.3*10.5

E10

30

1.5

8*10.5

F10

45

2.2

8*12.5

F12

60

3.3

10*13.5

G13

90

4.7

10*13.5

G13

115

6.8

10*16.5

G16

150

10

10*20.5

G20

170

15

12.5*21.5

J21

210

22

16*21.5

L21

280

500

4.7

10*16.5

G16

120

6.8

12.5*16

J16

160

10

12.5*21.5

J21

180

15

16*21.5

L21

210
