项目Items	性能Characteristics
使用温度范围Category Temperature Range	-40 to +105℃
额定工作电压 Rated Voltage Range	6.3 to 100Vdc
标称电容量范围 Nominal capacitance range	0.47-4700ｕＦ
静电容量允许范围 Capacitance Tolerance	±20%(M) (at 20℃, 120Hz)
漏电流 Leakage Current	I≤0.03CV (ｕＡ) 2分钟（at 20℃ after 2 minutes）
损耗角正切值 Dissipation Factor (tan δ)	UR (Vdc)	6.3		10		16		25		35	50	63	100
	tanδ (Max.)	0.28		0.24		0.22		0.20		0.15	0.14	0.10	0.09
	容量大于1,000ｕＦ者，每增加1,000ｕＦ，其损耗角正切值增加0.02 When nominal capacitance exceeds 1,000µF, add 0.02 to the value above for each 1,000µF increase (at 20℃, 120Hz)
温度特性 TemperatureCharacteristics	UR (Vdc)		6.3		10		16		25-120		160
	Z(-40℃)/Z(+20℃)		4		3		2		2		4
耐久性 Load life	105℃加额定电压2000后（每250小时换转极性一次），恢复16小时后； 05 C with rated voltage of 2000 (every 250 hours after transfer of polar time),after 16 hours of recovery; 电容量变化率 Capacitance change:±20%初始容量值以内±20% o f the initial measured value 漏电流 Leakage current: ≤初始规定值 ≤the initial specified value 损耗角正切值 Dissipation factor ≤2倍初始规定值≤ 2times of the initial specified value
高温贮存 Shelf Life	+105℃，1,000小时贮存后，恢复16小时 After storage for 1,000 hours at +105℃ and then resumed for 16 hours 电容量变化率 Capacitance change:±20%初始容量值以内±20% o f the initial measured value 漏电流 Leakage current: ≤2倍初始规定值≤2times of the initial specified value 损耗角正切值 Dissipation factor：≤2倍初始规定值≤ 2times of the initial specified value

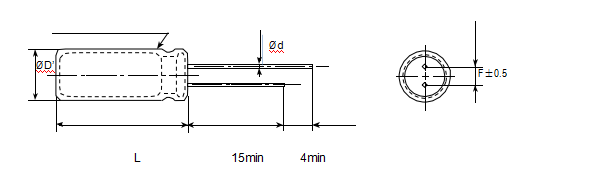

尺寸 [mm]

ØD	5	6.3	8	10	12.5	16	19	22
Ød	0.5	0.5	0.6	0.6	0.8	0.8	1.0	1.0
F	2.0	2.5	3.5	5.0	5.0	7.5	7.5	10.0
ØD'	ØD+0.5max.
L'	L（≥20）+2max .L（＜20）1.5max

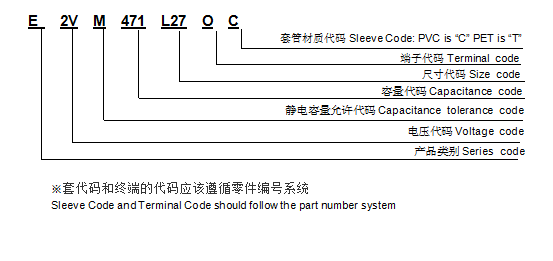

产品料号体系

电容器的寿命缩短内部加热产生的纹波电流减半的寿命每5℃上升率。当长寿命的性能是实际使用要求，均方根纹波电流也应减少。
