CD11GE
Features:High temperature resistance, high ripple, long life Endurance:105℃8000-10000hours Voltage Range:160~450V Capacitance Range:1-100μF Operating Temperature Range:-40 to +105℃
Key words:
SMD, LEAD, BOLT, SOLID STATE CAPACITORS
Product accessories:
Hotline:
E-mail:
CD11GE
Details Introduction
Endurance with ripple current：105℃ 8000 hours
Especially designed for electronic ballast
Designed for electronic energy-saving lamp, electronic ballast design
RoHS Compliant
SPECIFICATIONS
|
Items |
Characteristics |
|||||||||
|
|
-40 to +105℃（200—400vdc）-25 to +105℃(450vdc)， |
|||||||||
|
|
200 to 450Vdc |
|||||||||
|
|
1-100ｕＦ |
|||||||||
|
|
±20%(M) (at 20℃, 120Hz) |
|||||||||
|
|
200 to 400Vdc |
450Vdc |
|
|||||||
|
I≦0.02CV+10μA |
I≦0.03CV+10μA |
|||||||||
|
|
UR (Vdc) |
200V |
250V |
350V |
400V |
450V |
(at 20℃, 120Hz) |
|||
|
tanδ (Max.) |
0.08 |
0.08 |
0.10 |
|||||||
|
|
UR (Vdc) |
200V |
250V |
350V |
400V |
450V |
(at 120Hz) |
|||
|
Z(-25℃)/Z(+20℃) |
3 |
3 |
5 |
5 |
6 |
|||||
|
Z(-40℃)/Z(+20℃) |
6 |
6 |
6 |
6 |
-- |
|||||
|
|
At a temperature of 105 degrees in the environment, the continuous loading of DC voltage is the rated ripple current to be recoveredafter 8,000 hours, 24 hours later, at 20 C measurement, due to meet the following requirements. |
|||||||||
|
|
|
|||||||||
|
D.F. (tanδ) |
|
|||||||||
|
Leakage current |
The initial specified value |
|||||||||
|
|
The following specification shall be satisfied when the capacitors are restored to 20°C after exposing them for 1,000 hours at 105°C, without voltage applied. |
|||||||||
|
Capacitance change |
|
|||||||||
|
D.F. (tanδ) |
|
|||||||||
|
|
|
|||||||||

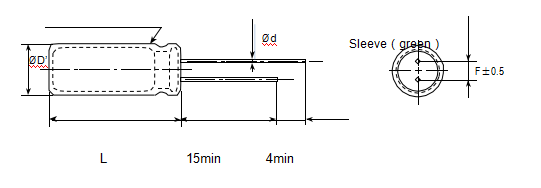

DIMENSIONS [mm]
|
ØD |
8 |
10 |
12.5 |
16 |
19 |
22 |
|
|
Ød |
0.6 |
0.6 |
0.6 |
0.8 |
0.8 |
0.8 |
1.0 |
|
F |
3.5 |
5．0 |
5.0 |
7.5 |
7.5 |
10 |
|
|
ØD' |
ØD+0.5max. |
||||||
|
L' |
L+2max. |
||||||
Frequency Coefficient
|
Freq.(Hz) |
120 |
1K |
10K |
100K |
|
WV(Vdc)
|
||||
|
200 to 450 |
0.50 |
0.80 |
0.90 |
1.00 |
The endurance of capacitors is shorted with internal heating produced by ripple current at the rate of halving the lifetime with every 5℃ rise. When long life performance is required in actual use, the rms ripple current has to be reduced.
STANDARD RATINGS
|
|
Cap |
|
|
|
200v(2D) |
4.7 |
8×12 |
90 |
|
5.6 |
8×16 |
95 |
|
|
6.8 |
8×16 |
105 |
|
|
8.2 |
10×16 |
160 |
|
|
10 |
10×16 |
220 |
|
|
15 |
10×16 |
320 |
|
|
10×20 |
335 |
||
|
22 |
10×20 |
490 |
|
|
|
12.5×20 |
490 |
|
|
33 |
12.5×20 |
560 |
|
|
47 |
16×25 |
650 |
|
|
68 |
16×25 |
740 |
|
|
100 |
16×30 |
950 |
|
|
250v(2E) |
2.2 |
8×12 |
90 |
|
3.3 |
8×12 |
100 |
|
|
4.7 |
8×12 |
120 |
|
|
5.6 |
8×16 |
130 |
|
|
6.8 |
8×16 |
145 |
|
|
8.2 |
10×16 |
175 |
|
|
10 |
10×16 |
255 |
|
|
10×20 |
265 |
||
|
15 |
10×20 |
400 |
|
|
22 |
12.5×20 |
570 |
|
|
33 |
12.5×20 |
610 |
|
|
12.5×25 |
620 |
||
|
47 |
12.5×25 |
700 |
|
|
16×25 |
730 |
||
|
68 |
16×30 |
900 |
|
|
100 |
19×30 |
1180 |
|
|
350v(2v) |
1 |
8×12 |
63 |
|
1.5 |
8×12 |
70 |
|
|
1.8 |
8×12 |
76 |
|
|
2.2 |
8×16 |
87 |
|
|
2.8 |
8×16 |
95 |
|
|
3.3 |
8×16 |
108 |
|
|
4.7 |
10×16 |
125 |
|
|
5.6 |
10×16 |
176 |
|
|
6.8 |
10×16 |
217 |
|
|
10×20 |
232 |
||
|
8.2 |
10×20 |
230 |
|
|
10 |
12.5×20 |
274 |
|
|
15 |
12.5×20 |
315 |
|
|
12.5×25 |
336 |
||
|
22 |
12.5×20 |
340 |
|
|
12.5×25 |
360 |
||
|
33 |
16×20 |
440 |
|
|
16×25 |
500 |
||
|
47 |
16×25 |
620 |
|
|
350v(2v) |
47 |
19×20 |
640 |
|
68 |
16×30 |
840 |
|
|
19×25 |
|||
|
100 |
19×35 |
950 |
|
|
400v(2G) |
1 |
8×12 |
70 |
|
1.5 |
8×12 |
80 |
|
|
1.8 |
8×16 |
82 |
|
|
2.2 |
8×16 |
90 |
|
|
2.8 |
10×16 |
98 |
|
|
3.3 |
10×16 |
105 |
|
|
4.7 |
10×16 |
115 |
|
|
10×20 |
125 |
||
|
5.6 |
10×16 |
150 |
|
|
10×20 |
175 |
||
|
6.8 |
10×20 |
210 |
|
|
8.2 |
12.5×20 |
245 |
|
|
10 |
12.5×20 |
276 |
|
|
15 |
12.5×25 |
410 |
|
|
22 |
16×25 |
450 |
|
|
33 |
16×30 |
655 |
|
|
47 |
19×30 |
870 |
|
|
68 |
22×30 |
1050 |
|
|
450v(2W) |
1 |
8×12 |
72 |
|
1.5 |
8×12 |
85 |
|
|
1.8 |
8×16 |
88 |
|
|
2.2 |
8×16 |
92 |
|
|
2.8 |
10×16 |
96 |
|
|
3.3 |
10×16 |
105 |
|
|
4.7 |
10×16 |
120 |
|
|
10×20 |
130 |
||
|
5.6 |
10×20 |
175 |
|
|
6.8 |
10×20 |
210 |
|
|
8.2 |
12.5×20 |
255 |
|
|
10 |
12.5×20 |
310 |
|
|
15 |
12.5×25 |
410 |
|
|
22 |
16×25 |
550 |
|
|
33 |
16×30 |
690 |
|
|
47 |
19×30 |
865 |
|
|
68 |
22×30 |
980 |
