CD268L
Details Introduction
保证寿命：105℃3,000-5,000小时
低阻抗，耐高温，高纹波，长寿命品，特别适用于开关电源，高压充电器，电子电表等电子线路
符合ROHS
主要技术性能
|
项目Items |
性能Characteristics |
||||||||||||||||
|
使用温度范围 |
-40 to +105℃（160—400vdc） |
||||||||||||||||
|
额定工作电压 |
160 to 400Vdc |
||||||||||||||||
|
标称电容量范围Nominal |
1-180ｕＦ |
||||||||||||||||
|
静电容量允许范围 |
±20%(M) (at 20℃, 120Hz) |
||||||||||||||||
|
漏电流 |
I≦0.02CV |
I:漏电流（μA），C：静电容量（μF），V：额定电压（v）。20℃1分钟后测试 |
|||||||||||||||
|
损耗角正切值 |
UR (Vdc) |
160 |
200 |
250 |
350 |
400 |
(at 20℃, 120Hz) |
||||||||||
|
tanδ (Max.) |
0.08 |
0.10 |
0.12 |
||||||||||||||
|
温度特性Temperature |
UR (Vdc) |
160 |
200 |
250 |
350 |
400 |
(at 120Hz) |
||||||||||
|
Z(-25℃)/Z(+20℃) |
3 |
3 |
3 |
4 |
5 |
||||||||||||
|
Z(-40℃)/Z(+20℃) |
5 |
5 |
6 |
7 |
9 |
||||||||||||
|
耐久性 |
在105℃环境中，连续加载直流电压与额定纹波电流3,000-5,000小时后待恢复24小时后20℃测量，应满足以下要求After application of the rated DC Ripple current voltage at 105℃2,000-4,000hours , then resumed for 24 hours at 20℃ .the capacitors shall meet the requirements as below. |
||||||||||||||||
|
静电容量 |
≤初始规定值得±20%， |
|
|||||||||||||||
|
损耗角正切值D.F. (tanδ) |
≤初始规定值的200% |
||||||||||||||||
|
漏电流（2分钟）eakage current after 1 minutes |
≤初始规定值The initial specified value after 1 minutes |
||||||||||||||||
|
高温储存 |
以下规格应满足无施加电压105℃ 1,000小时后 ，20℃恢复24小时The following specification shall be satisfied when the capacitors are restored to 20°C after exposing them for 1,000 hours at 105°C, without voltage applied. |
||||||||||||||||
|
静电容量变化 |
≤初始规定值的±20% |
|
|||||||||||||||
|
D.F. (tanδ) |
≤初始规定值的200% |
||||||||||||||||
|
漏电流 |
≤初始规定值的200% |
||||||||||||||||
尺寸[mm] (Ø6.3 to Ø19)
|
ØD |
6.3 |
8 |
10 |
12.5 |
16 |
19 |
|
Ød |
0.5 |
0.6 |
0.6 |
0.8 |
0.8 |
0.8 |
|
F |
2.5 |
3.5 |
5.0 |
5.0 |
7.5 |
7.5 |
|
ØD' |
ØD+0.5max. |
|||||
|
L' |
L+2max. |
|||||

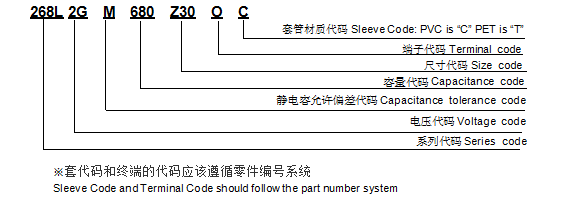

产品料号体系
纹波电流修正系数
|
Freq.(Hz) |
120 |
1K |
10K |
100K |
|
160~250 |
0.50 |
0.80 |
0.90 |
1.00 |
|
350~400 |
0.55 |
0.85 |
0.94 |
1.00 |
电容器的寿命缩短内部加热产生的纹波电流减半的寿命每5℃上升率。当长寿命的性能是实际使用要求，均方根纹波电流也应减少。
