CD293BZ
Details Introduction
保证寿命85℃ 2000小时
符合RoHS
主要技术性能
|
项目Items |
特性Characteristics |
||||||||||||
|
适用温度范围 |
-40~+85℃ |
-25~+85℃ |
|||||||||||
|
额定电压范围 |
10~400V.DC |
450~500V.DC |
|||||||||||
|
标称容量允许偏差 |
±20% (M) (at 20℃, 120Hz) |
||||||||||||
|
漏电流 |
在20℃下加额定电压 5分钟后，漏电流不大于 0﹒01cv,或1.5mA |
||||||||||||
|
损耗角正切值Dissipation Factor |
Rated voltage (Vdc) |
10V |
16V |
25V |
35V |
50V |
63V |
80V |
100V |
160 to 200V |
250 to 500V |
(at 20℃, 120Hz) |
|
|
tanδ (Max.) |
0.40 |
0.40 |
0.30 |
0.25 |
0.20 |
0.15 |
0.15 |
0.15 |
0.12 |
0.15 |
|||
|
低温稳定性 |
Rated voltage (Vdc) |
10V |
16V |
25V |
35V |
50V |
63V |
80V |
100V |
160 to 200V |
250 to 500V |
(at 120Hz) |
|
|
Z(-25℃)/Z(+20℃) |
4 |
3 |
4 |
||||||||||
|
Z(-40℃)/Z(+20℃) |
15 |
6 |
8 |
- |
|||||||||
|
耐久性 |
85℃施加带纹波电流的额定电压2000小时，恢复16小时后 |
||||||||||||
| 电容量变化Capacitance change |
≤初始规定值以内±15% ≤±15% of the initial value |
||||||||||||
| 损耗D.F. (tanδ) |
≤初始规定值150% ≤150%of the initial specified value |
||||||||||||
|
漏电流 Leakage current |
≤初始规定值 The initial specified value |
||||||||||||
|
高温储存 |
85℃，1000小时贮存后，加额定工作电压处理30分钟，恢复16小时后 |
||||||||||||
| 电容量变化Capacitance change |
≤初始规定值以内±15% ≤±15%of the initial value |
||||||||||||
| 损耗D.F. (tanδ) |
≤初始规定值150% 150% of the initial specified value |
||||||||||||
|
漏电流 Leakage current |
≤初始规定值得150% 150%The initial specified value |
||||||||||||

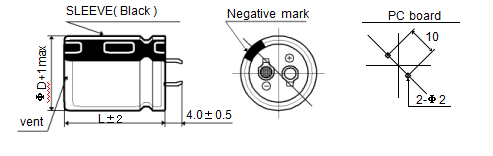

尺寸 [mm]
终端代码 : K (Ф22 toФ35) : Standard

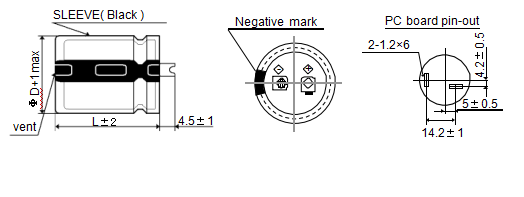

终端代码 : L (Ф35)
额定纹波电流修正系数
倍频系数
|
W.V |
120 |
1K |
10K |
100K |
|
10~50 |
1.00 |
1.03 |
1.05 |
1.18 |
|
63~100 |
1.00 |
1.07 |
1.13 |
1.36 |
|
160~250 |
1.00 |
1.32 |
1.45 |
1.55 |
|
400~500 |
1.00 |
1.30 |
1.41 |
1.60 |
电容器的寿命缩短内部加热产生的纹波电流减半的寿命每5℃上升率。当长寿命的性能是实际使用要求，均方根纹波电流也应减少。
