VH series

Features:Low resistance, long life, high stability Endurance:105℃ 6,000-8000hours Voltage Range:10 to 500dc Capacitance Range:6.8-470μF Operating Temperature Range:-40 to +105℃

Key words:

SMD, LEAD, BOLT, SOLID STATE CAPACITORS

Classification:

Surface Mount

Product accessories:

Hotline:

+86-513-8669 1579

E-mail:

yhy@sanxidz.com

Contact Us
Consulting

VH series

Details Introduction

life:105℃6,000 hours

Low resistance, long life, high stability

Designed for the LED lamp, the design of driving source LED

RoHS Compliant

　　

SPECIFICATIONS

Items

Characteristics


Category
Temperature Range

-40 to +105℃


Rated Voltage Range

160 to 500dc


Nominal capacitance range

6.8-100ｕＦ


Capacitance Tolerance

±20%(M)        (at 20℃, 120Hz)


Leakage Current


After 1minutes at20℃application of rated voltage,leakage current is not than 0.04cv+100uA




Dissipation Factor
(tan δ)

UR  (Vdc)

160

200

250

400

450

500



 20℃ 120Hz

tanδ (Max.)%

20

24




Temperature
Characteristics

UR  (Vdc)

160

200

250

400

450

500

     120Hz

Z(-25℃)/Z(+20℃)

6

Z(-40℃)/Z(+20℃)

10


 Load life

 Test conditions  duration

After applying rated voltage for 8,000hours at +105℃ and then resumed for 24 hours
Capacitance change:±25% o f the initial measured value
2minutes Leakage current: ≤the initial specified value
  Dissipation factor ≤ 2times of the initial specified value


Shelf Life


After 105 hours, 1000 hours, the rated voltage is applied for 30 minutes to recover 24 hours.

Capacitance change


20%of the initial value

D.F. (tanδ)


200%of the initial specified value


Leakage current


200%The initial specified value

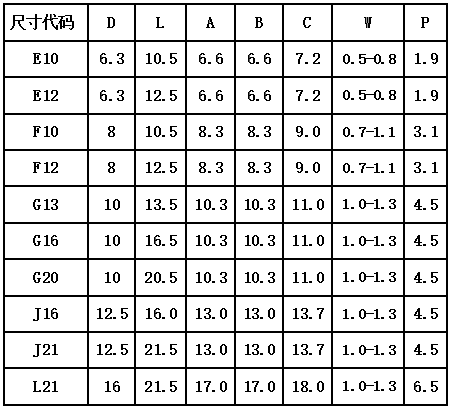

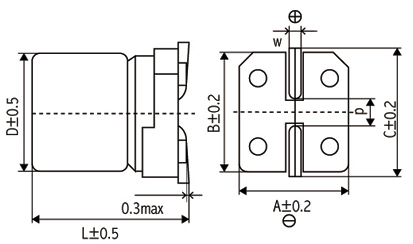

　　Size Picture mm





　　Frequency correction coefficient of ripple current



Frequency（Hz）

120

1K

10K

100K

Voltage（V）

160-500

0.50

0.80

0.90

1.00



WV
(Vdc)

Cap
(µF)


Case size
ΦD×L(mm)

Code


Ripple current
(Arms/105℃,100KHz)

160

6.8

6.3*10.5

E10

120

10

8*10.5

F10

180

15

8*12.5

F12

244

22

10*16.5

G16

336

33

10*16.5

G16

450

47

10.20.5

G20

520

68

12.5*16

J16

640

100

12.5*21.5

J21

780

200

4.7

6.3*10.5

E10

100

6.8

8*10.5

F10

142

10

8*10.5

F10

204

15

8*12.5

F12

244

22

10*16.5

G16

350

33

10*20.5

G20

430

47

12.5*21.5

J21

550

68

12.5*21.5

J21

590

250

2.2

6.3*10.5

E10

55

3.3

6.3*10.5

E10

90

4.7

6.3*10.5

E10

95

4.7

8*10.5

F10

100

6.8

8*12.5

F12

118

10

8*12.5

F12

204

15

10*13.5

G13

270

22

10*16.5

G16

358

33

12.5*21.5

J21

504

47

12.5*21.5

J21

590
