CD11MB

Features:Small volume,high stability,long life Endurance:105℃15000hours 130℃3000hours Voltage Range:10~120V Capacitance Range:0.47-18000μF Operating Temperature Range:-40 to +130℃

Key words:

SMD, LEAD, BOLT, SOLID STATE CAPACITORS

Classification:

Lead type

Lighting

Product accessories:

Hotline:

+86-513-8669 1579

E-mail:

yhy@sanxidz.com

Contact Us
Consulting

CD11MB

Details Introduction

Endurance with ripple current :130℃ 2000-5000 hours

Low resistance, long life, high stability

Designed for the LED lamp, the design of driving source LED

RoHS Compliant

　　

SPECIFICATIONS



Items

Characteristics

Category
Temperature Range

-40 to +130℃


Rated Voltage Range

10 to 120Vdc


Nominal capacitance range

1-4700ｕＦ


Capacitance Tolerance

±20%(M) (at 20℃, 120Hz)


Leakage Current


After 1minutes at20℃application of rated voltage,leakage current is not than 0.01cv or 3 ,whichever is greater




Dissipation Factor
(tan δ)

UR  (Vdc)

10

16

25

35

50

63

80

100

120

tanδ (Max.)

0.20

0.16

0．14

0.12

0.10

0．09

0.08

0.08

0.10


When nominal capacitance exceeds 1,000µF, add 0.02 to the value above for each 1,000µF increas (at 20℃, 120Hz)

Temperature
Characteristics

UR  (Vdc)

10

16

25

35

50

63

80

100

120

         (at 120Hz)

Z(-25℃)/Z(+20℃)

3

2

3

Z(-40℃)/Z(+20℃)

6

4

3

6


Load life

 Test conditions  duration

After applying rated voltage for 2,000-5,000hours at +130℃ and then resumed for 20hours
Capacitance change:±25% of the initial measured value
2minutes Leakage current: ≤the initial specified value
Dissipation factor ≤ 2times of the initial specified value
ɸD Load life
ɸD≤8 2000
ɸD=10 3000
ɸD≥12.5 5000


Shelf Life


The following specification shall be satisfied when the capacitors are restored to 20°C after exposing them for 1,000 hours at 130°C, without
voltage applied.

Capacitance change


20%of the initial value



D.F. (tanδ)


200%of the initial specified value


Leakage current


200%The initial specified value

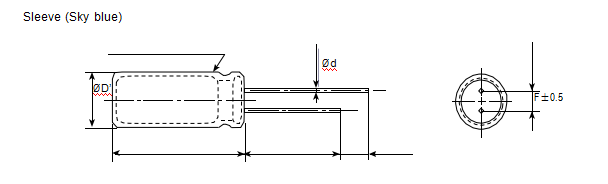

Dimensions [mm]





ØD

5

6.3

8

10

12.5

16

18

Ød

0.5

0.5

0.5

0.6

0.6

0.8

0.8

0.8

F

2.0

2.5

3.5

5.0

5.0

7.5

7.5

ØD'

ØD+0.5max.

L'

L（≥20）+2max  .L（≤20）1.5max L+2max.

　　

　

Frequency Coefficient



Hz

50(60)

120

1K

10K

100K

Cap (uF)

≤10

0.35

0.42

0.60

0.80

1.00

10~47

0.45

0.55

0.75

0.90

1.00

47~470

0.60

0.70

0.85

0.95

1.00

470~2200

0.65

0.75

0.95

0.98

1.00

≥2200

0.75

0.80

0.95

1.00

1.00

　

The endurance of capacitors is shorted with internal heating produced by ripple current at the rate of halving the lifetime with every 5℃ rise. When long life performance is required in actual use, the rms ripple current has to be reduced.

STANDARD RATINGS



WV
(Vdc)

Cap
(µF)


Case size
ΦD×L(mm)


Tanδ（%）


Ripple current
(Arms/105℃,120Hz)

10(v)

330

8*12

0.20

360

470

8*13

0.20

620

1000

10*13

0.20

950

2200

10*20

0.22

1230

3300

12.5*25

0.24

1700

4700

16*30

0.26

2100

16(v)

330

8*12

0.16

360

470

10*13

0.16

620

1000

10*17

0.16

950

2200

12.5*25

0.18

1430

3300

16*25

0.20

2300

4700

18*30

0.22

2400

35(v)

33

5×11

0.57

200

47

5×11

0.21

350

100

8×12

0.13

660

220

10×13

0.086

800

330

10×16

0.060

1230

470

10×16

0.046

1400

560

10×20

0.042

1650

1000

12.5×20

0.026

2130

1500

12.5×25

0.020

2680

2200

16×25

0.017

3140

3300

16×30

0.013

3900

4700

19×30

0.010

4480

50(v)

1

5×11

0.30

35

2.2

5×11

0.17

53

3.3

5×11

0.12

65

4.7

5×11

0.090

82

10

5×11

0.12

100

22

5×11

0.084

125

33

6.3×11

0.058

200

47

6.3×11

0.055

300

68

6.3×11

0.055

340

100

8×12

0.043

560

220

10×16

0.061

900

330

10×16

0.045

1080

470

12.5×20

0.034

1650

680

16×25

0.030

2310

1000

16×25

0.025

2560

2200

19×30

0.017

3680

2700

19×35

0.014

3800

63(v)



22

5×11

1.8

180

33

6.3×11

1.0

230

47

8×12

0.50

310

68

6.3×11

0.40

315

100

8×14

0.36

408

220

10×16

0.16

750

330

12.5×20

0.096

1150

470

12.5×20

0.055

1650

680

16×25

0.047

1760

1000

16×25

0.035

1960

80(v)



10

6.3×11

0.63

210

22

8×12

0.54

360

33

8×12

0.33

508

47

8×12

0.31

593

100

10×16

0.11

760

220

12.5×20

0.063

1260

330

12.5×25

0.057

1800

470

16×25

0.042

1950

1000

19×25

0.033

2345

100(v)

10

6.3×11

1.0

126

22

6.3×11

0.5

260

33

8×16

0.38

300

47

10×12

0.34

450

68

10×16

0.25

400

100

10×12.5

0.15

560

220

12.5×20

0.077

1230

330

16×25

0.060

1550

470

19×25

0.040

1980
